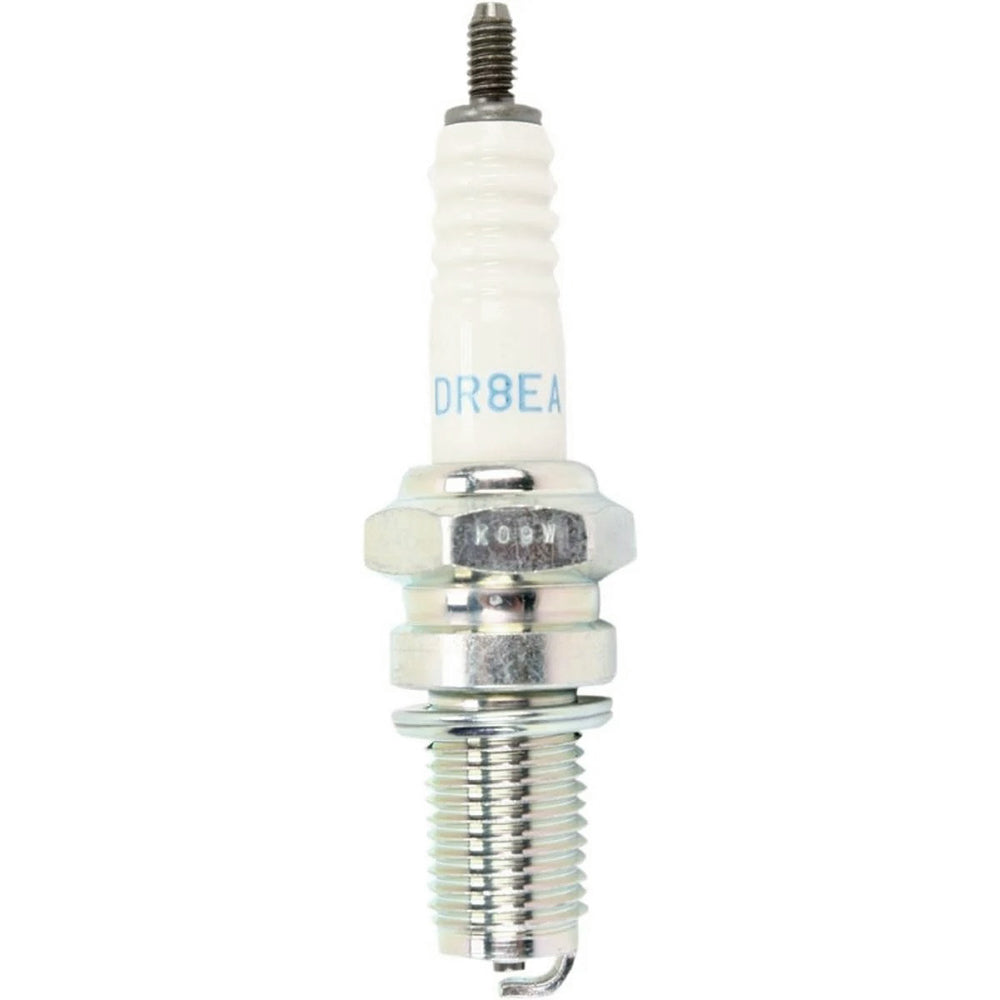

Yamaha TTR230 DR8EA Spark Plug - NGK

NGK DR8EA standard resistor spark plug – the correct plug for the Yamaha TTR230. NGK standard plugs are built for long life and reliable starting.

Features

• Trivalent metal plating for anti-corrosion and anti-seize protection
• Corrugated ribs to prevent flashover
• Pure alumina silicate ceramic insulator
• Copper core for better heat removal
• Triple seals to prevent leakage

Specifications

• Thread: 12 mm x 1.25 mm, 19 mm (3/4") reach, gasket seat
• Hex: 18 mm
• Resistor: yes (5 kΩ)
• Gap: 0.7 mm (0.028")
• Terminal: threaded stud

Fitment

• Yamaha TTR230 2005-on

Please note

• Always check the plug gap before fitting
