Not sure what suspension parts you actually need for your KLX110L? This kit takes the guesswork out of upgrading your suspension.
We’ve put together a complete, proven suspension package that improves comfort, control, and overall bike stance while eliminating the confusion of mixing and matching individual parts. Everything in this kit is designed to work together as a balanced setup straight out of the box.

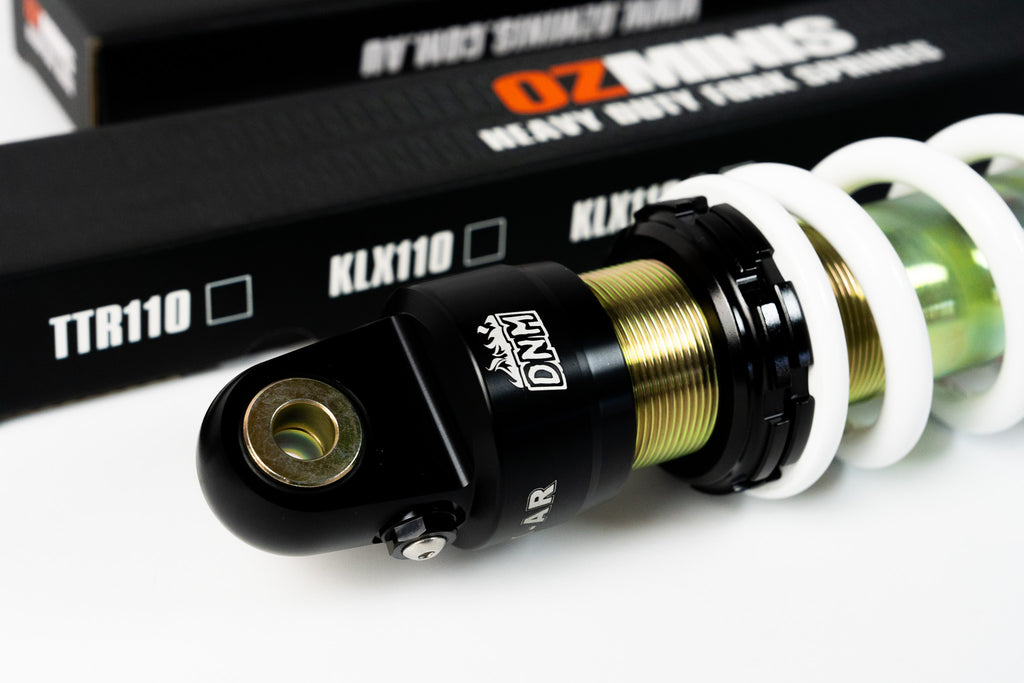

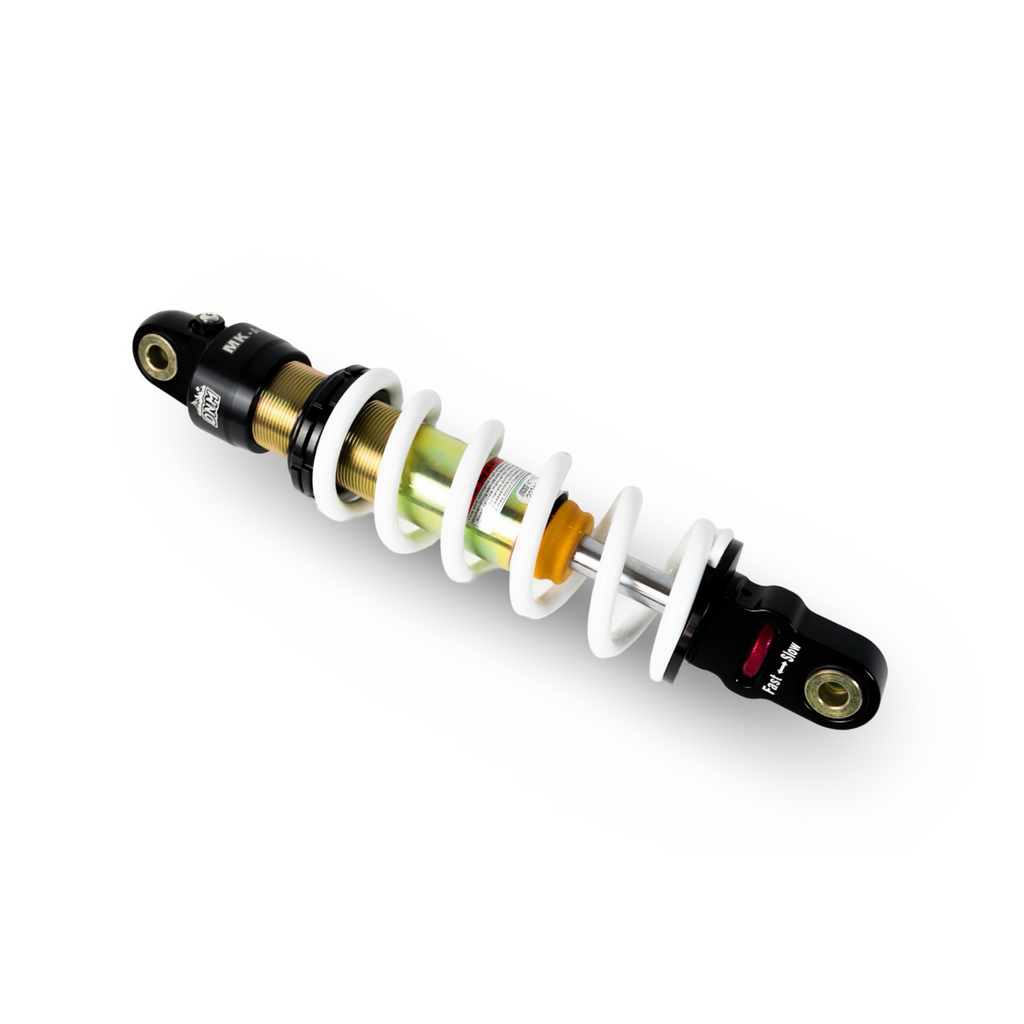

This kit provides an overall ride height increase of +40mm (1.5 inches), raising both the front and rear of the bike to maintain proper geometry and balance. The extended damping rods increase front fork travel and ride height, while the matched DNM rear shock lifts the rear to suit the new front height, resulting in a more planted and capable feel across all types of riding.
Weight Selection Guide (Important)
This is a general guide based on rider weight and an average riding style:
250LBS – Recommended for 60KG–80KG 300LBS – Recommended for 80KG–95KG 350LBS – Recommended for 100KG+
If you are on the edge of a weight bracket, your riding style should also be considered.
If you mainly cruise, trail ride, or ride more casually, you can lean toward the lower spring rate for a more comfortable feel. If you ride aggressively, hit jumps, or push the bike hard, stepping up to the next weight category will provide better support and control.
We generally do not recommend the 350LBS kit unless you are a 100KG+ rider and planning to ride the bike hard, as it is a noticeably stiffer setup and can feel harsh for casual riding, cruising, and wheelies.
If you’re unsure which setup to choose, feel free to contact the shop. The boys can ask a few quick questions about rider weight, skill level, and riding style to help tailor the best setup for your rider weight and riding style.

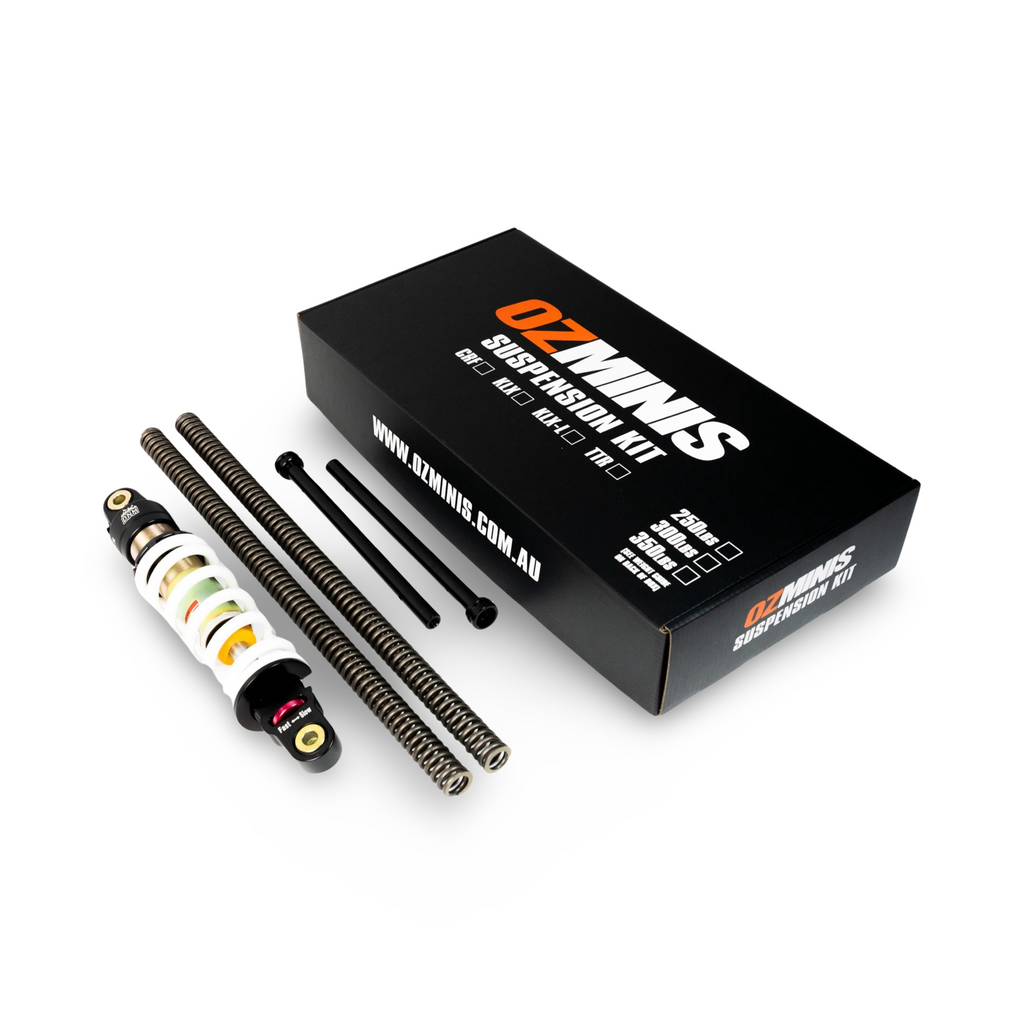

This Suspension Kit Includes:

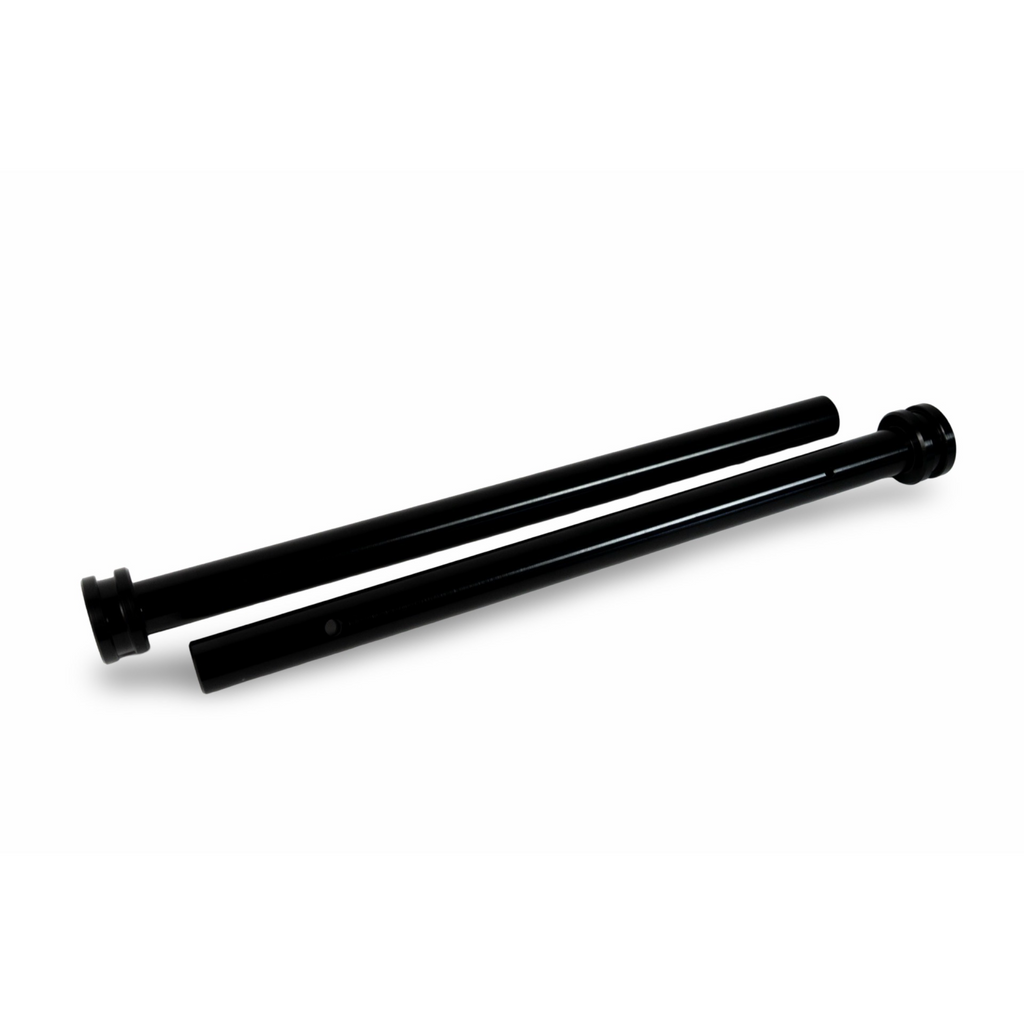

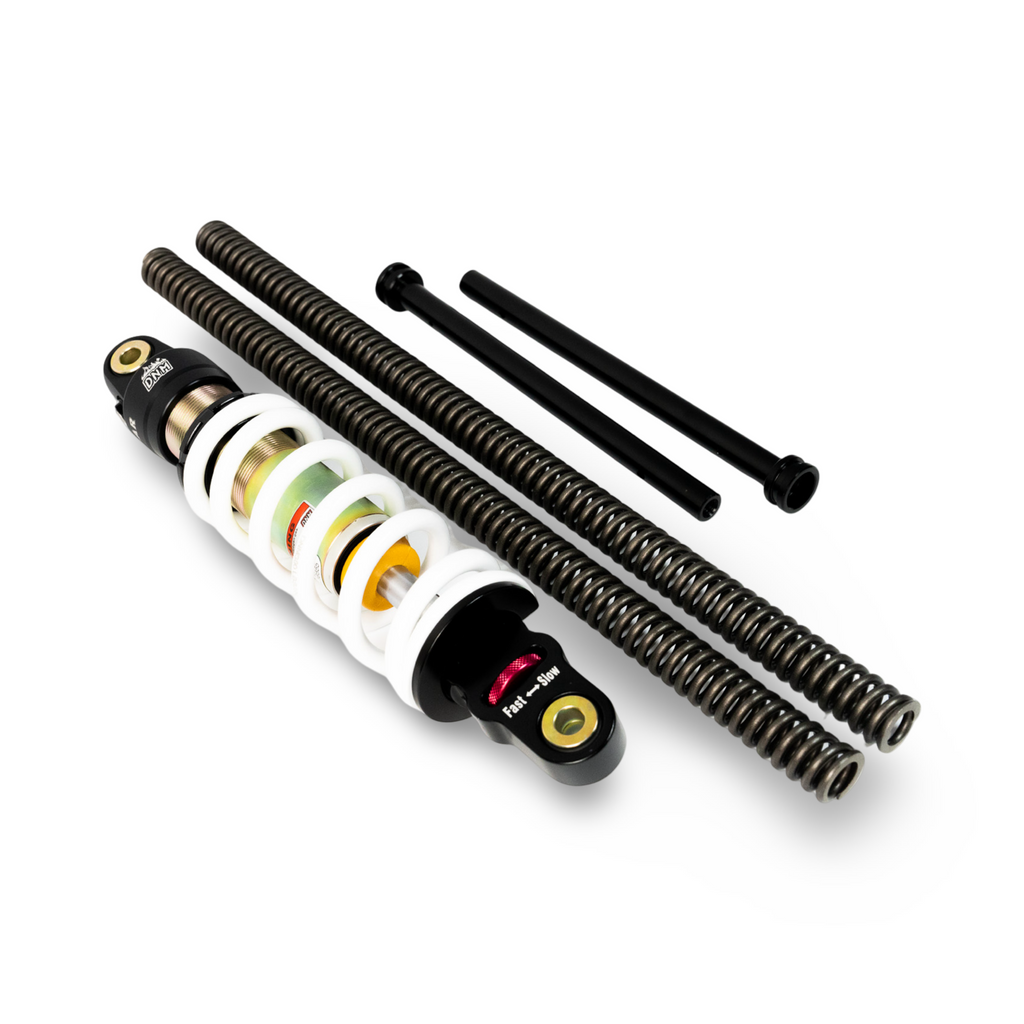

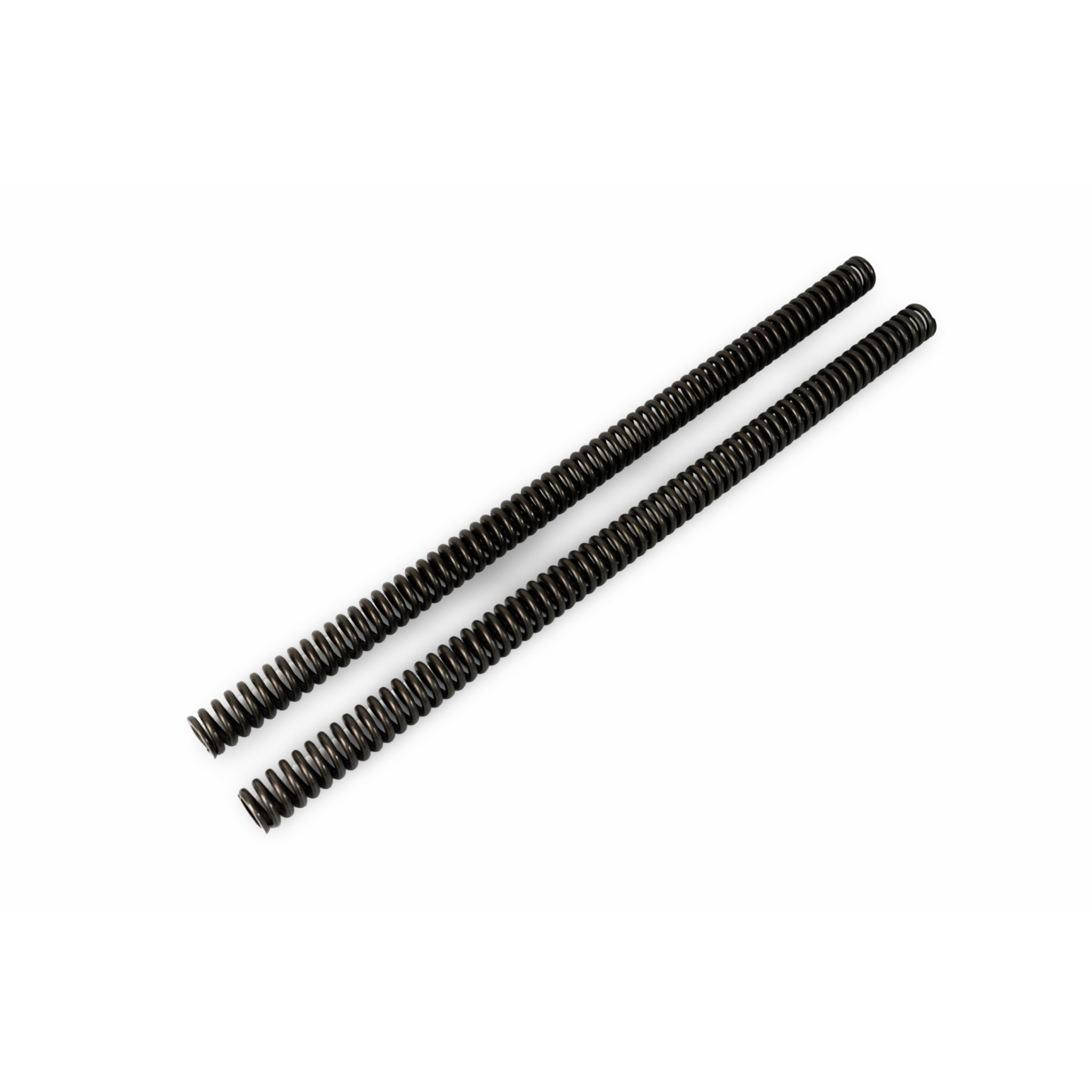

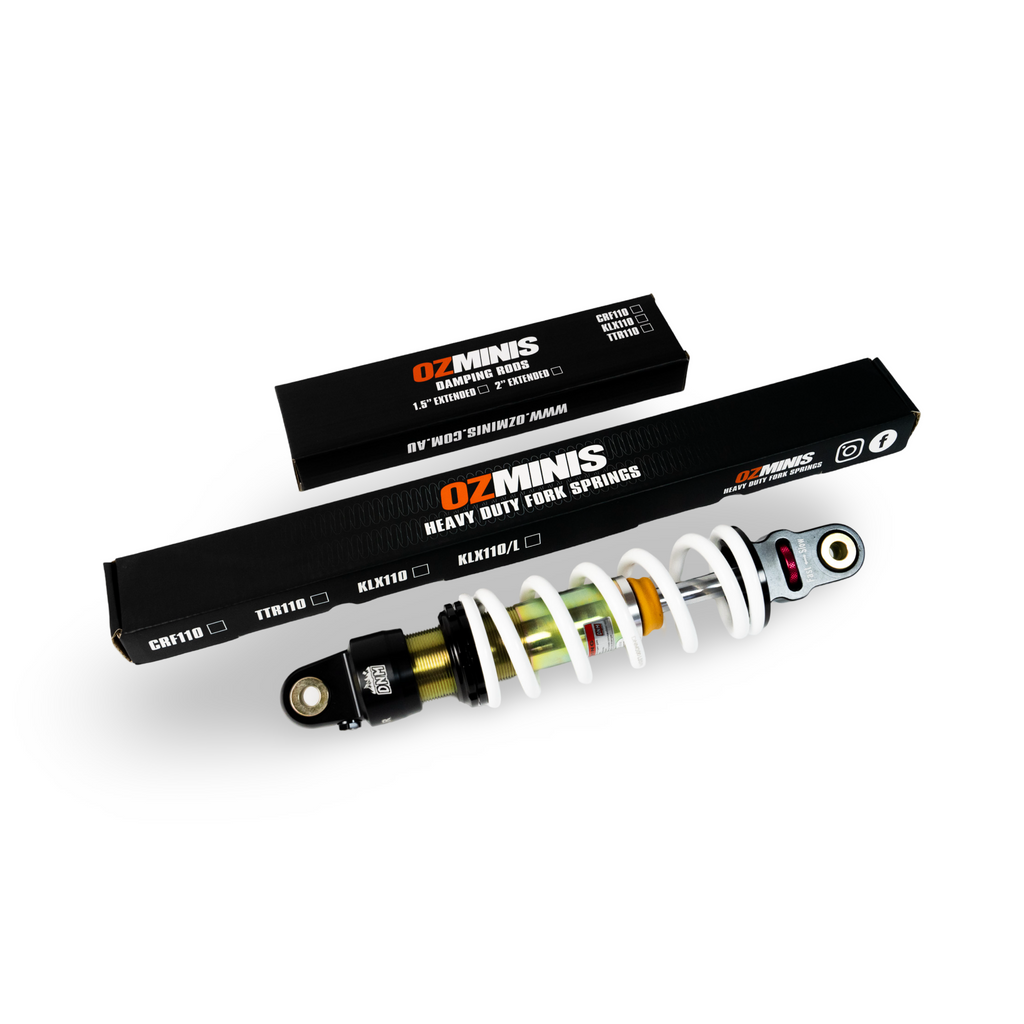

Heavy Duty Fork Springs +1.5” Extended Damping Rods DNM Rear Shock (Spring Rate of Your Choice)
This combination significantly improves front-end support, rear balance, ride height, and overall ride quality compared to the soft factory KLX110L suspension, especially for adult riders or heavier riders.
Installation Note:
We recommend upgrading your Fork Seals while installing the suspension kit, as the forks will already be disassembled during the install process. This can help prevent leaks and save labour down the track.
20W Fork oil can be used for riders who want a stiffer front end.
Installation Video Guide:
We have a full step-by-step YouTube installation video available to guide you through the process of fitting the suspension kit. This covers fork disassembly, damping rod installation, spring setup, and reassembly to make the install as straightforward as possible.
